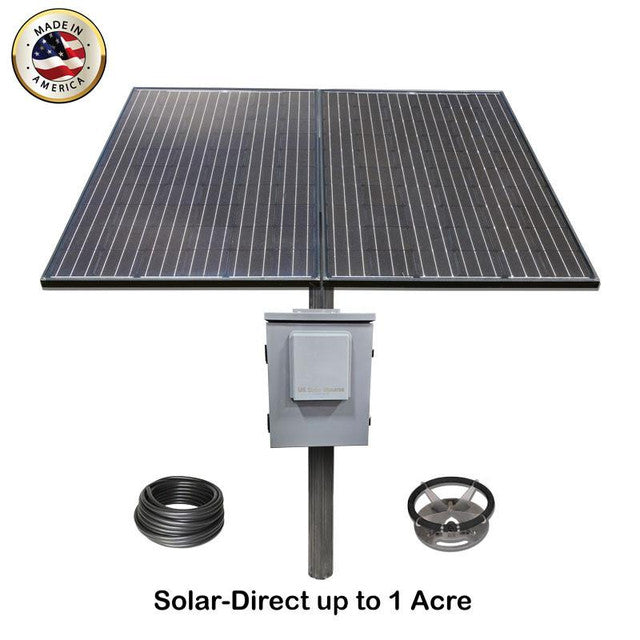

This is the SD-1 Solar Aerator FULL Package with DUAL SOLAR PANELS already included.
Dual Solar Panels provides EXTREME LOW-LIGHT PERFORMANCE!
The SD-1 Solar Aerator will efficiently aerate ponds up to 1 acre. Made with high-quality, American-Made components, the SD-1 provides low-maintenance, high-volume Solar Aeration on any site. No batteries, AC wiring, or electrician are needed, saving you time and money. A brushless compressor offers over 3x the system life of brushed permanent magnetic motors.
A Few SD-1-PM Features:
- 2.8 CFM @ 10 PSI
- Brushless DC Rocking Piston Compressor
- Low-Light Operation - Runs with as little as 6% Sunlight
- Very EASY & FAST installation
-
Extremely Quiet - less than 65db @6'
-
Pole-Mount Enclosure & Hardware
- Extremely Rugged Steel Enclosure.
- Enclosure is all-welded and powder coated
- Locking Cabinet Hardware
- High-Flow enclosure ventilation
- Proprietary High-Efficiency Digital Motor Controller
- Intake filter/silencer with replaceable filter cartridges
- Dramatically increased daily run hours
- Rated depth of 30'+
- 2x 345+ Watt American Made 60-Cell Solar Module (41"x69")
- Includes all hardware for the 2nd panel upgrade.
For a full list of features and specifications, click here: BLDC spec sheet
The SD-1-PM DUAL kit includes:
- Complete compressor/control system
- (2) 60-Cell 345+ Watt Solar Modules & Adjustable Pole-Top Mount
- Pole mount enclosure with mounting hardware
- (1) DB36 Diffuser
- (1) 100' x 3/8" Weighted Hose
- PV Cables
- Easy to Follow Instructions
- Full TECH SUPPORT
- Factory Warranty
About a second panel
The SD-1 DUAL package comes with (2) 60-Cell solar panels. This provides approximately 3x the power required by the compressor for full-speed operation under even moderate lighting conditions. The additional panel will not change the operation of the compressor on a sunny day, but extends the run time quite dramatically during times of low light and cloudy weather. Dual panels allows the SD-1 or SD-2 aerator to operate very well during very dark, overcast conditions - even during rain or snowfall.
Customer supplies a 3" (3.5" OD) SCH40/SCH80 steel mounting pole.
DO NOT us Plastic Pipe/Tube.
Contact us with any questions. See warranty information here.
